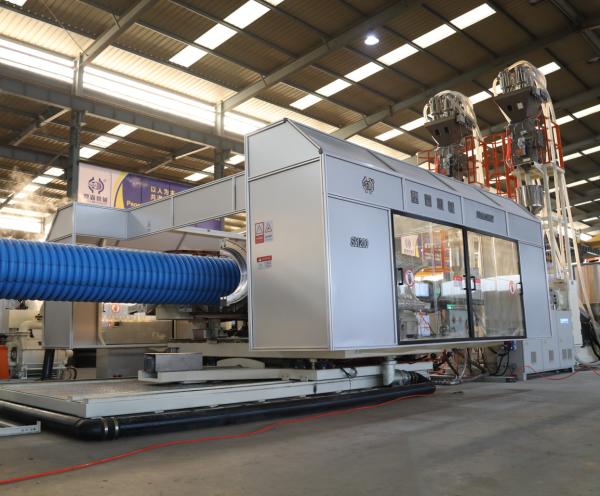

SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC

    Buy cheap SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC from wholesalers

    Buy cheap SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC from wholesalers
    • Buy cheap SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC from wholesalers
    • Buy cheap SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC from wholesalers
    • Buy cheap SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC from wholesalers

    SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC

    Ask Lasest Price
    Brand Name : SUBA
    Model Number : SL1200
    Certification : ISO9001/CE
    Price : $228,000.00 - $798,000.00/sets
    Payment Terms : L/C, T/T
    Supply Ability : 4 Unit/Units per Month
    Delivery Time : 30-120 work days
    • Product Details
    • Company Profile

    SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC

    CONFIGURATION OF SL100

    • SJ90/36 single screw extruder (inner layer)
    • SJ120/36 single screw extruder (outer layer)
    • SL1000 corrugator
    • SL1000 cooling tank
    • SL1000 cutter
    • SL1000 stacker

    High Speed * Excellent Performance * Easier Operation System * Low Power Consumption

    SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC

    TECHNICAL DATE

    ModelPipe range
    (DN/mm)
    Installed power
    (kW)
    Production power
    (kW)
    Moulds number
    (pairs)
    Chain Length
    (mm)
    Max. output
    (kg/h)
    Dimision(L*W*H)
    (m)
    SL1000ID600-OD14001430390-520386685160035*8.5*5.8

    EQUIPMENT FEATURES

    The whole extrusion line include: extruders, corrugator, cooling tank, cutter, tacker and the toolings.


    SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC

    EXTRUDERS

    • Single screw extruders and large L/D ratio- 36:1 screws, which has a good plasticization, high output.

    SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC

    DIE HEAD

    • Short flow channel acheives lowe temperature and low pressure extrusion, which increases production efficiency by 25%.
    • Dynamic adjustment of die head.
    • Less adjustment time- without usage of fastening scerws.
    • Cooling mandrel is made of the aluminium alloy and has a wear resistance layer on the discharge, high cooling efficiency and longer life service life.
    • Fast changeover time.

    SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC

    CORRUGATOR

    • Closed loop pressure water cooling system-high forming efficiency.
    • Advanced and high-strength structural design ensures stable production.
    • Powerful and high-automatic vacuum
    • Fast moulds' changeover process.
    • Equipped with water temperature control system.
    • Touch screen technology with different languages.
    • PCC control system.

    SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC

    MOULD

    • Made of high-quality aluminium alloy.
    • Water-cooled moulds guarantee high cooling efficiency and high output.
    • Water temperature control system ensures excellent pipe quality.
    • Moulds are compatible with different corrugators.
    • Fast changeover time.

    SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC

    CUTTER

    • Chipless cutter enable precise, noiseless and dust-free cutting
    • Innovative trigger mechanism ensures precise cutting.
    • Two modes: automatic and manual operation.
    • Adopts turnable bearings, linear guide rails and dual Italian hydraulic system to acheive center symmetry and smooth operation

    EXHIBITION AND CLIENTS VISITING

    SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC
    Suba attends many exhibitions every year: Like K shown, Chinaplas, NPE, and plastics exhibitions in
    various countries.Welcome to follow us and visit us!!

    CASES

    SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC

    Suba's pipe designs and extrusion lines are welcomed and recognized by more and more world-renowned
    pipe manu-facturers from Russia,England, Ukraine, Austria, Turkey, Syria.Azerbaijan,Uzbekistan,Tajkistan,
    Kyrgyzstan, Uruguay, Argentina,Peru, Georgia, India, Malaysia, Indonesia, Vietnam, Philippines, Kenya etc.
    Look forward to work with you!

    PATENTS AND CERTIFICATIONS

    SL1200 DWC Pipe Corrugator Corrugated Tube Production Line For PP PE PVC
    Supporting with many patents and advanced design of Suba lines, Suba lines acheive excellent performance,
    high speed and eaiser operation system.
    Please contact us for more details!!!
